Description

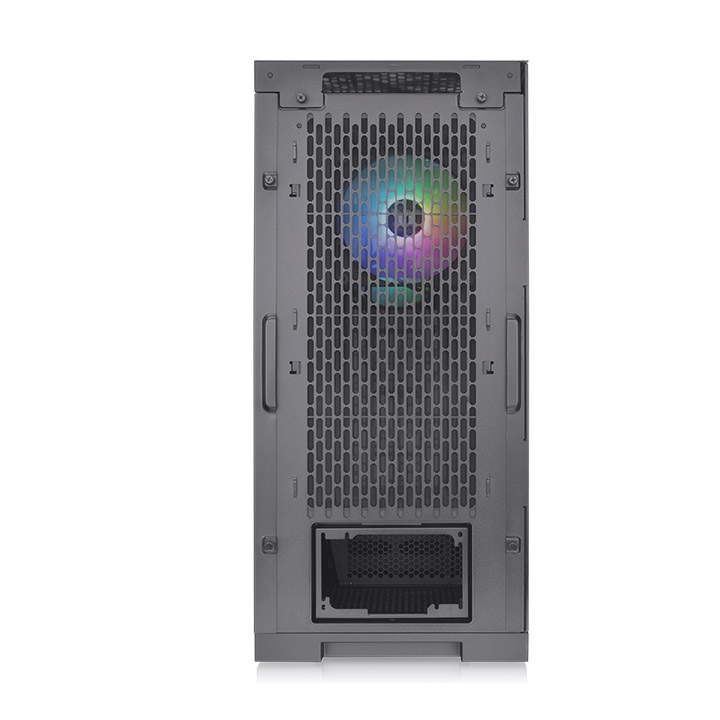

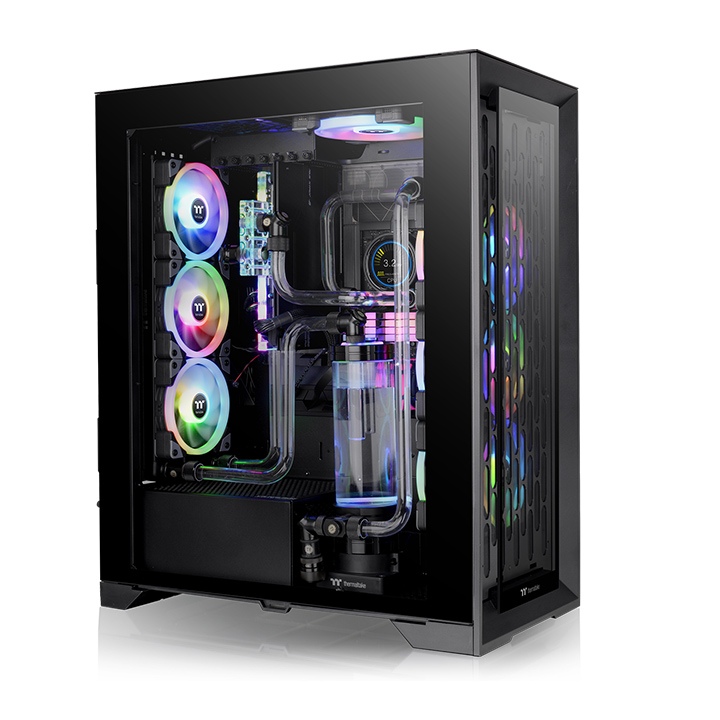

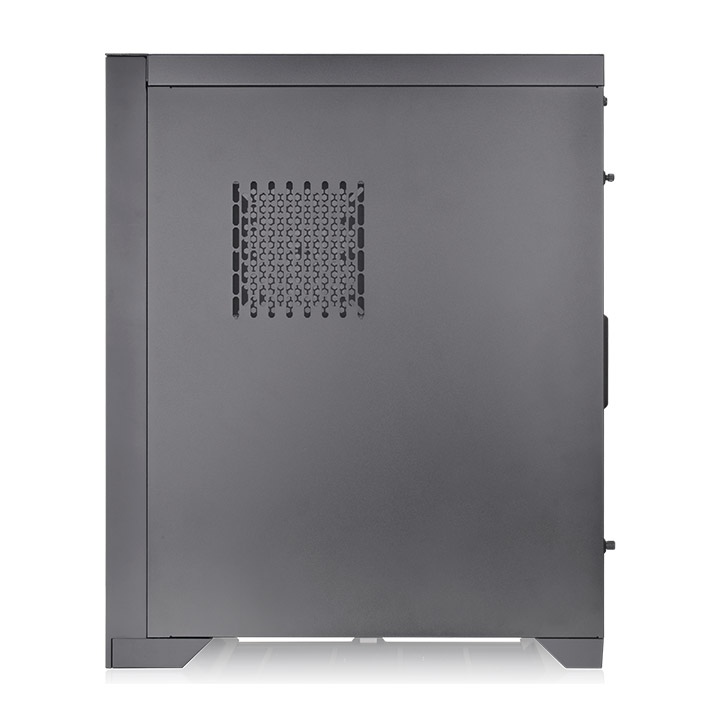

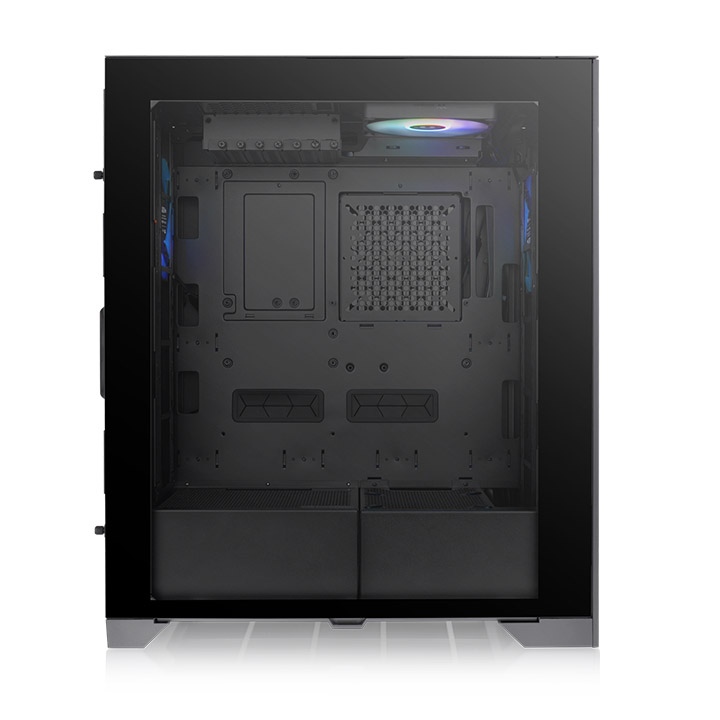

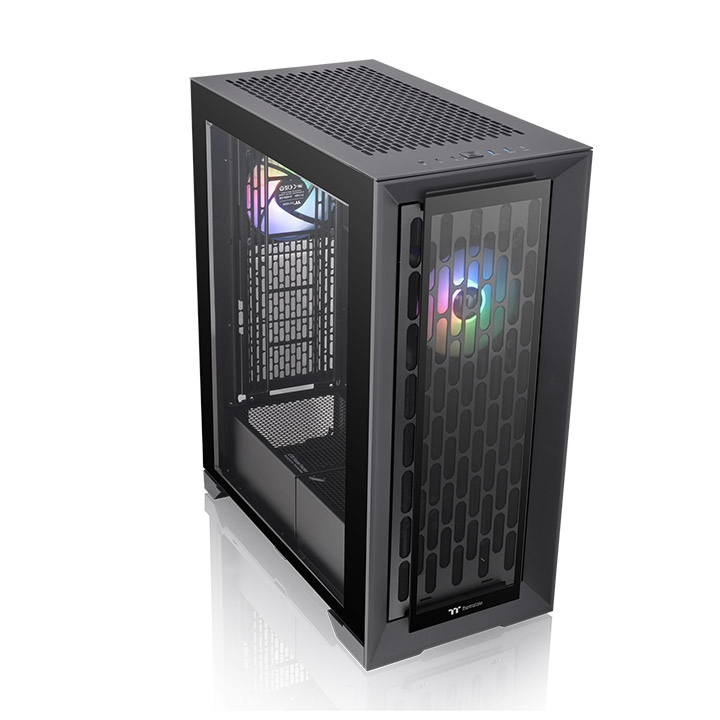

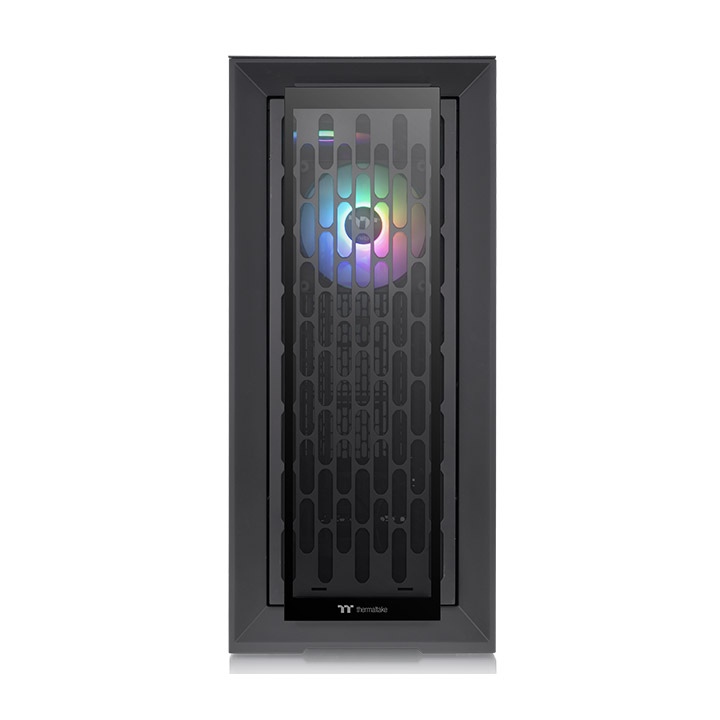

TT CASE, CTE T500 TG ARGB FULL TOWER C
The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.
Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.
P/N: CA-1X8-00F1WN-01
Series: CTE
CASE TYPE: Full Tower
Dimension (H x W x D): 615x 275 x 516 mm
(24.21 x 10.83 x 20.31 inch)
NET WEIGHT: 15.3 kg / 33.73 lbs.
PANEL: 4mm Tempered Glass x 2
Color: Black
MATERIAL: SPCC / ABS
COOLING SYSTEM
Front(intake):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
Top(exhaust):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
Rear(intake):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1
