TT CASE, AH T200 SNOW

SKU: CA-1R4-00S6WN-00

The Thermaltake AH T200 Snow is a helicopter styled open frame micro chassis which comes with two 4mm tempered glass panels on left and right sides and can support motherboards up to Micro ATX.

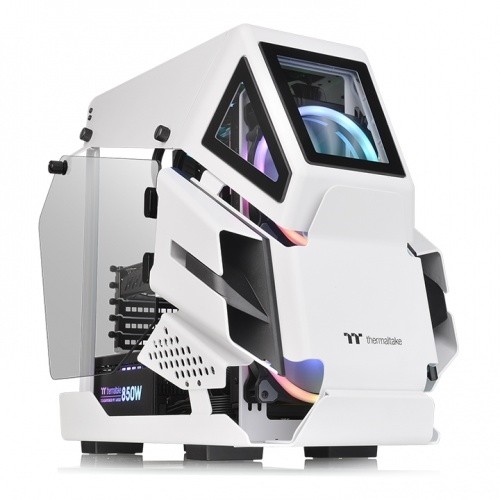

Thermaltake AH T200 Snow Micro Chassis
The AH T200 Snow, a smaller version of the AH T600, is the first micro case from the AH Series which is forged with a sturdy, air-force styled architecture with two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front. I/O ports are located at the top-front panel with a futuristic power button. Not only ensures outstanding ventilation but enables users to demonstrate their handwork and showcase their internal components. The AH T200 Snow can hold up to two 140mm fans at the front and on top, 240mm or 280mm All-In-One CPU cooler at the front. The AH T200 Snow Micro Chassis is one-of-a-kind that all users will notice, love, and desire.

Brand:

Description

P/N
CA-1R4-00SAWN-00

Series
AH Series

Model
AH T200 Pink

CASE TYPE
Micro Case

Dimension (H x W x D)
444.2 x 282 x 551.5 mm
(17.5 x 11.1 x 21.7 inch)

NET WEIGHT
10.8 kg / 23.8 lb

SIDE PANEL
Tempered Glass x 2

Color
Pink

MATERIAL
SPCC

COOLING SYSTEM
N/A

Drive Bays
-Accessible
-Hidden

2 x 3.5″ or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)

EXPANSION SLOTS
5

MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

I/O Port
USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1

PSU
Standard PS2 PSU (optional)

FAN SUPPORT
Front:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm

Top:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm

RADIATOR SUPPORT
Front:
1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm

CLEARANCE
CPU cooler max height: 150mm
VGA max length: 320mm
PSU max length: 180mm
3.5” HDD thickness limitation: 22mm
