Description

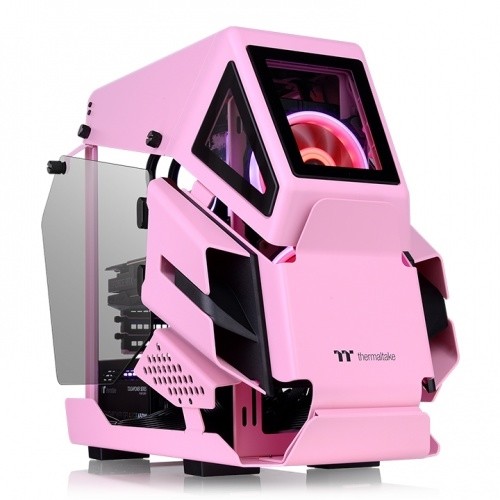

The AH T200 helicopter-inspired open frame micro chassis comes in a limited Pink edition. It features two 4mm tempered glass panels on the left and right sides and can support motherboards up to a Micro ATX.
P/N
CA-1R4-00SAWN-00
Series
AH Series
Model
AH T200 Pink
CASE TYPE
Micro Case
Dimension (H x W x D)
444.2 x 282 x 551.5 mm
(17.5 x 11.1 x 21.7 inch)
NET WEIGHT
10.8 kg / 23.8 lb
SIDE PANEL
Tempered Glass x 2
Color
Pink
MATERIAL
SPCC
COOLING SYSTEM
N/A
Drive Bays
-Accessible
-Hidden
2 x 3.5″ or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)
–
EXPANSION SLOTS
5
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port
USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Top:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
RADIATOR SUPPORT
Front:
1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
CLEARANCE
CPU cooler max height: 150mm
VGA max length: 320mm
PSU max length: 180mm
3.5” HDD thickness limitation: 22mm
