Toughpower GF 550W

SKU: PS-TPD-0550FNFAGx-2
, , ,

Toughpower GF 550W

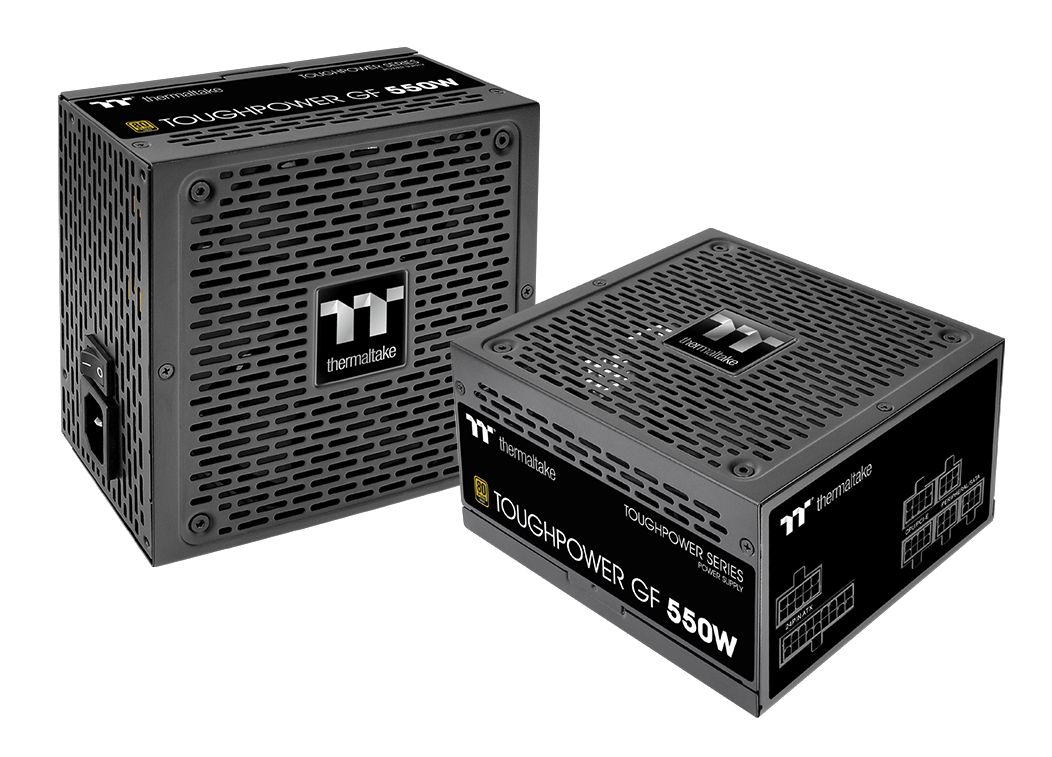

The Toughpower GF 550W is built to deliver 80 PLUS Gold efficiency with up to 90% of it. Constructed with a 140mm Fluid Dynamic Bearing Fan, Japanese main capacitors and other premium components, the Toughower GF 550W delivers a continuous and stable power output at 40℃, allowing near silent operation and reliable performance. With an ample 10-year warranty, the Toughpower GF 550W Gold is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

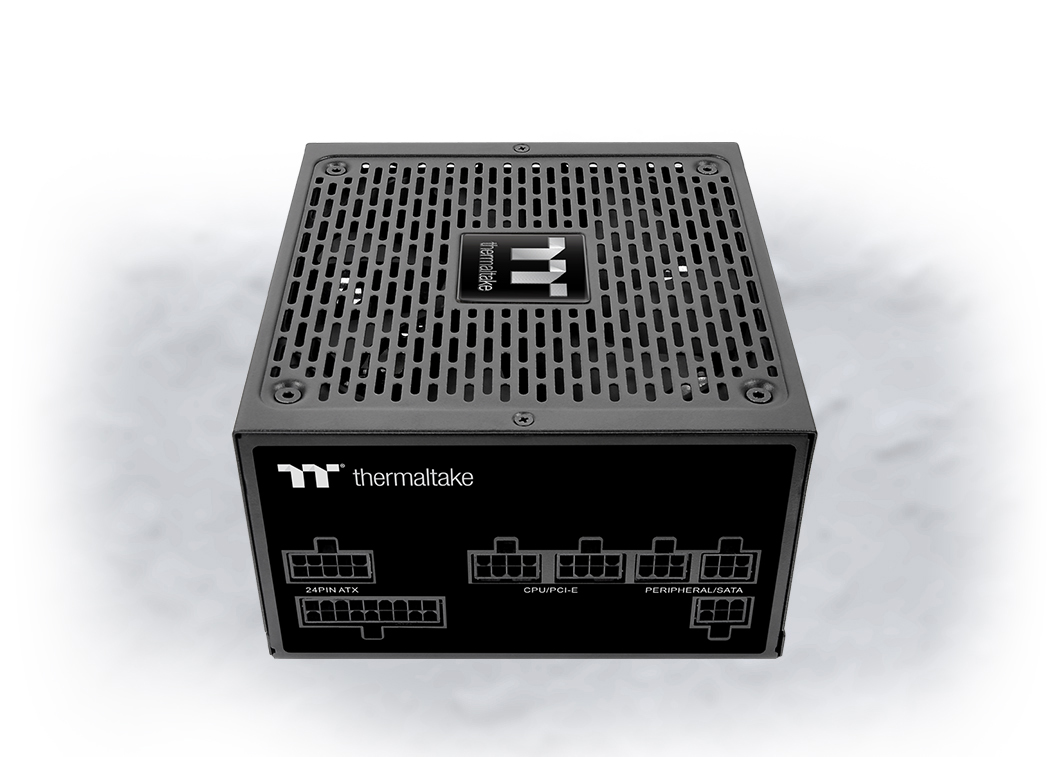

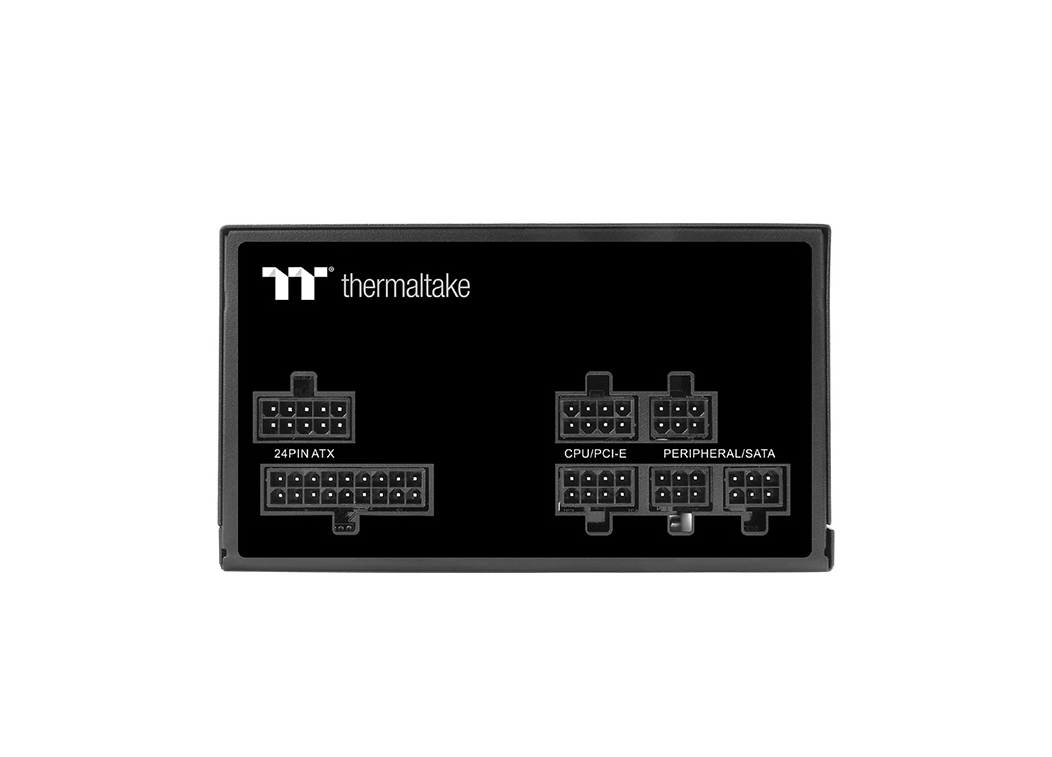

Fully Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Brand:

Description

More Information
P/N PS-TPD-0550FNFAGx-2
watts 550W
Model TTP-550AH3FCG-B
Max. Output Capacity 550W
Peak Output Capacity 660W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 12msec at 80% of full load at 230Vac input
Input Current 8A max.
Input Frequency Range 47Hz – 63Hz
Input Voltage 100V – 240V~
OPERATING TEMPERATURE 0°C to + 40°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing

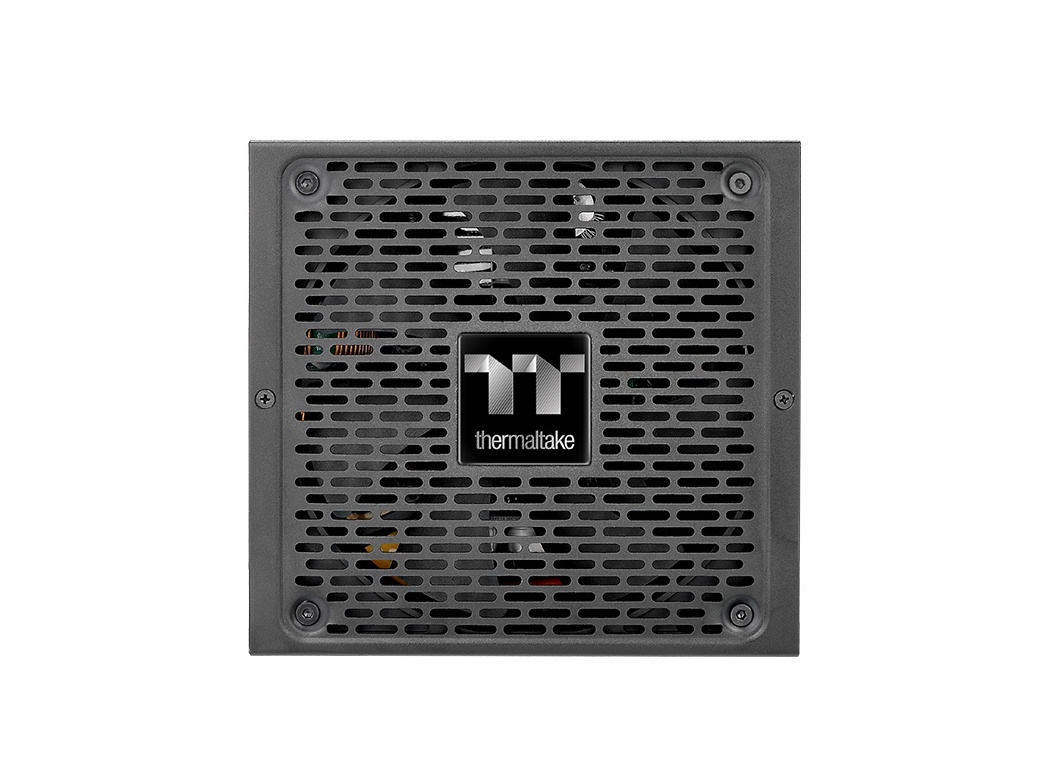

COOLING SYSTEM 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/cTUVus/TÜV/FCC/EAC
PCI-E 6+2pin 2
PROTECTION OCP, OVP, UVP, OPP, SCP, OTP

Additional information

Dimensions 150 × 86 × 160 mm
Color

Black
