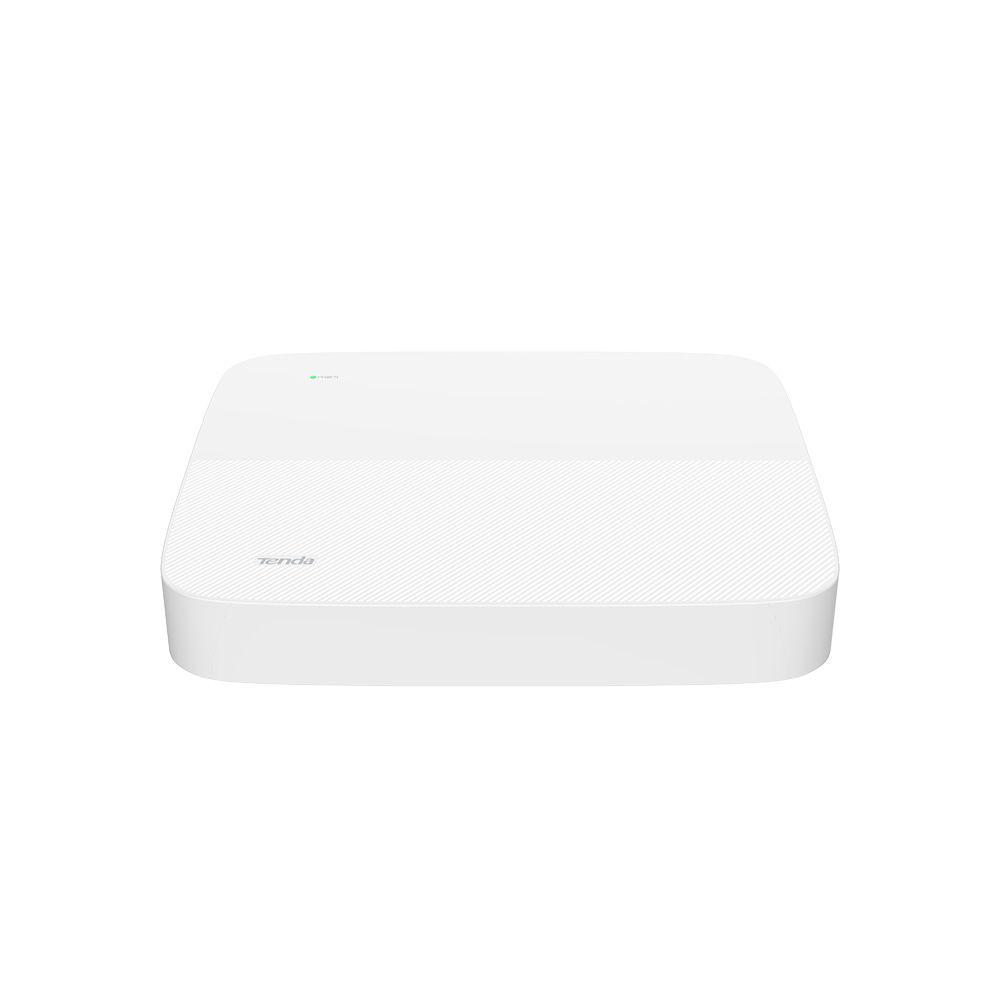

TENDA NVR 8 CHANNEL POE

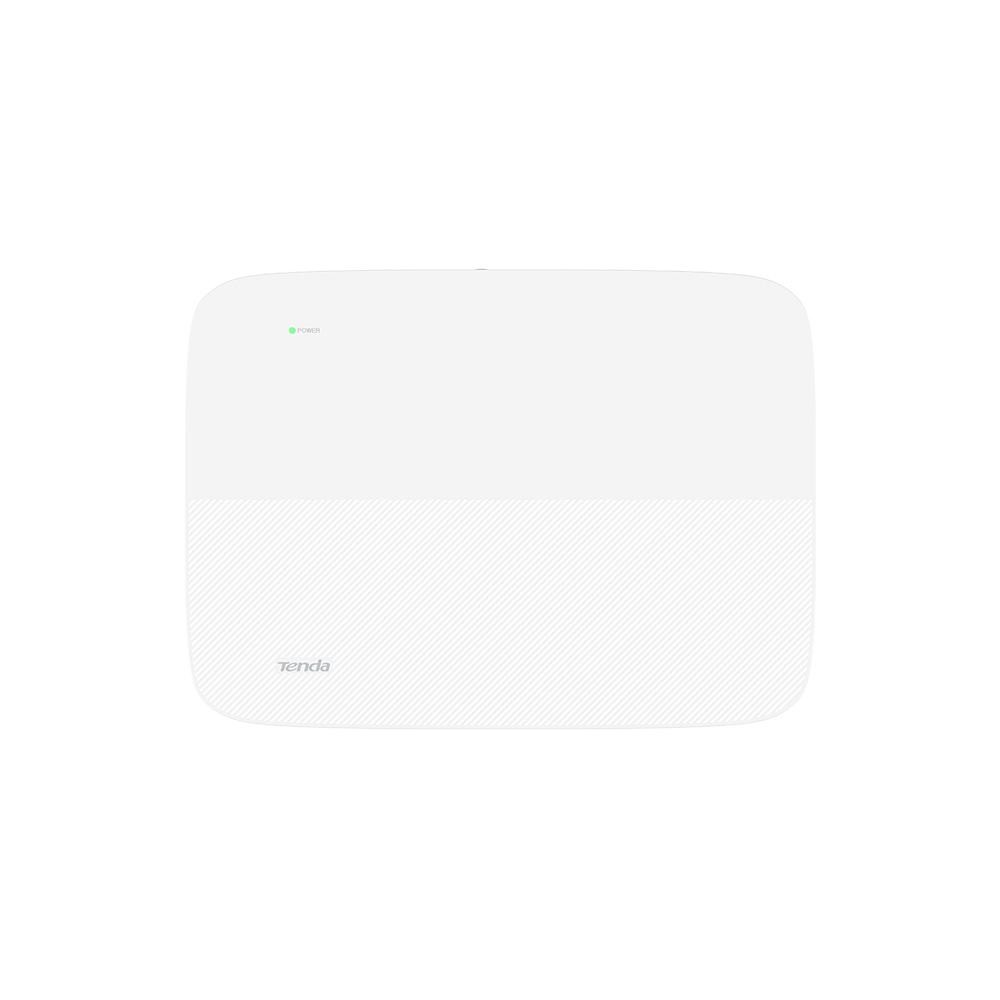

TENDA NVR 8 CHANNEL POE - Image 2

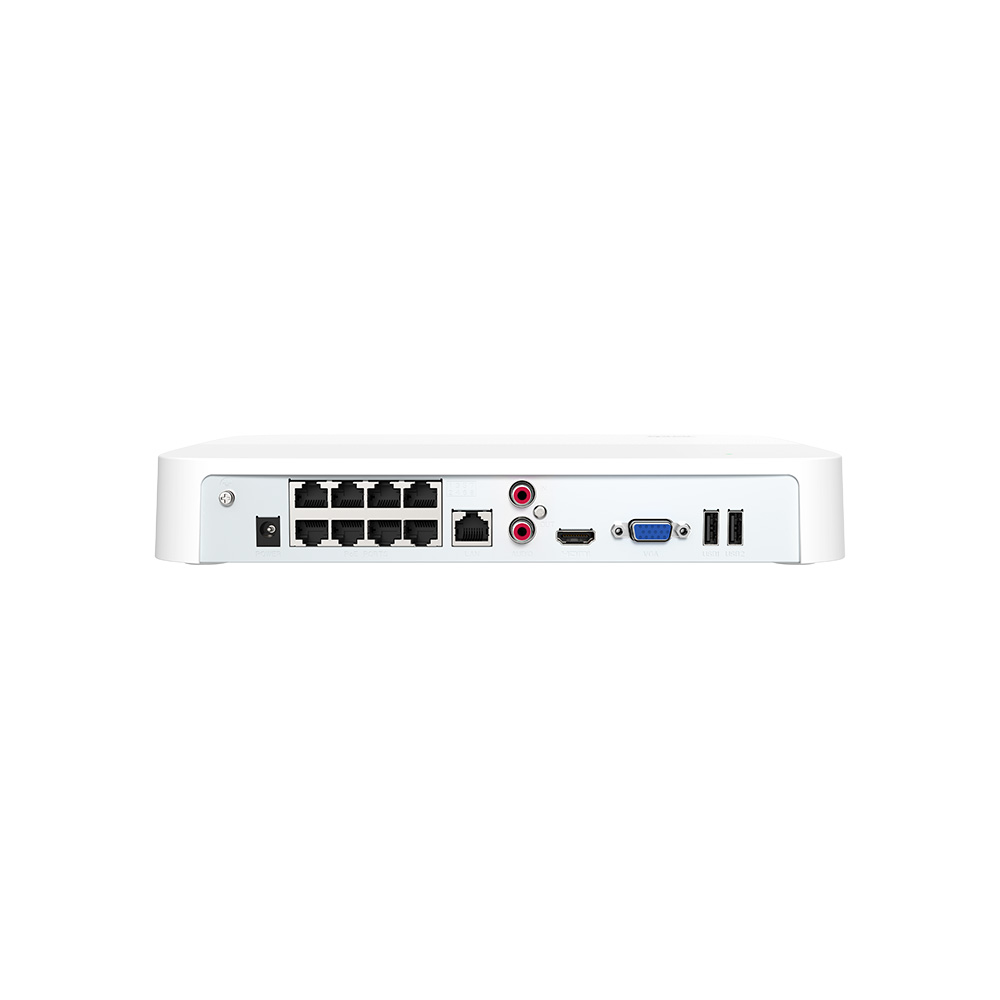

TENDA NVR 8 CHANNEL POE - Image 3
TENDA NVR 8 CHANNEL POE - Image 4
TENDA NVR 8 CHANNEL POE - Image 5
TENDA NVR 8 CHANNEL POE - Image 6

TENDA NVR 8 CHANNEL POE

SKU: N6P-8H
,

4K UHD camera connected and 4K high-definition HDMI output with up to 3840 x 2160 resolution provides you clear images with more details even when zoomed.

Brand:

Description

4K UHD Monitoring Image Captures Clear and Delicate Monitoring Details
4K UHD camera connected and 4K high-definition HDMI output with up to 3840 x 2160 resolution provides you clear images with more details even when zoomed.

Plug and Play Without Further Configuration
Network Video Recorder will automatically search and add the camera connected to the PoE port,then you can see monitor images without further configuration.

Additional information

Weight 780 g
Dimensions 300 × 425 × 405 mm
Video

IP Video Input: 8-ch
IP Video Resolution: Up to 8MP
Input Bandwidth: 60 Mbps
Audio Input: 1-ch, RCA (2.0 Vp-p, 10kΩ)
Video & Audio Output

HDMI Output: 1-ch, 4K(3840×2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Output Bandwidth: 60 Mbps
Audio Output: 1-ch, RCA (2.0 Vp-p, 10kΩ)
Video & Audio Decoding

Video Decoding Format: H.265+, H.265, H.264+, H.264
Audio Decoding Format: G.711A, G.711U, G726
Recording Resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
Decoding Capability: 4-ch@1080P(30 fps)
Stream Type: Video, Video & Audio
Recording Management

Record Mode: Normal, Alarm
Playback Mode: Instant, Channel, File, Tag
Sync Playback: Up to 8-ch
Backup Mode: USB device
Network Managemant

Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
Network Protocol: HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS
Mobile Client: Supports iOS, Android
Web Browser: Plug-in free live view : Chrome, Edge, Opera
PoE

PoE Port: 8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports
PoE Standard: IEEE 802.3at/802.3af
PoE Power: ≤70 W
HDD Storage

HDD Interface: 1 SATA 3.0 interface
Capacity: Up to 10 TB capacity for each HDD
External Interface

USB Port: 2 x USB 2.0
General

Power: 48 VDC, 1.875 A
Dimension: 284 mm × 207 mm × 43 mm (11.2 ” × 8.2 ”× 1.7 ”)
Weight (Without HDD): 780 g (1.72lb)
Certification: CCC, CE, FCC, RoHS
Installation Method: Desktop mounting, wall mounting

Temperature:
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Storage Temperature: -30°C – 70°C (-22°F – 158°F)

Humidity:
Operating Humidity: 10% – 90% RH (non-condensing)
Storage Humidity: 5% – 95% RH (non-condensing)
