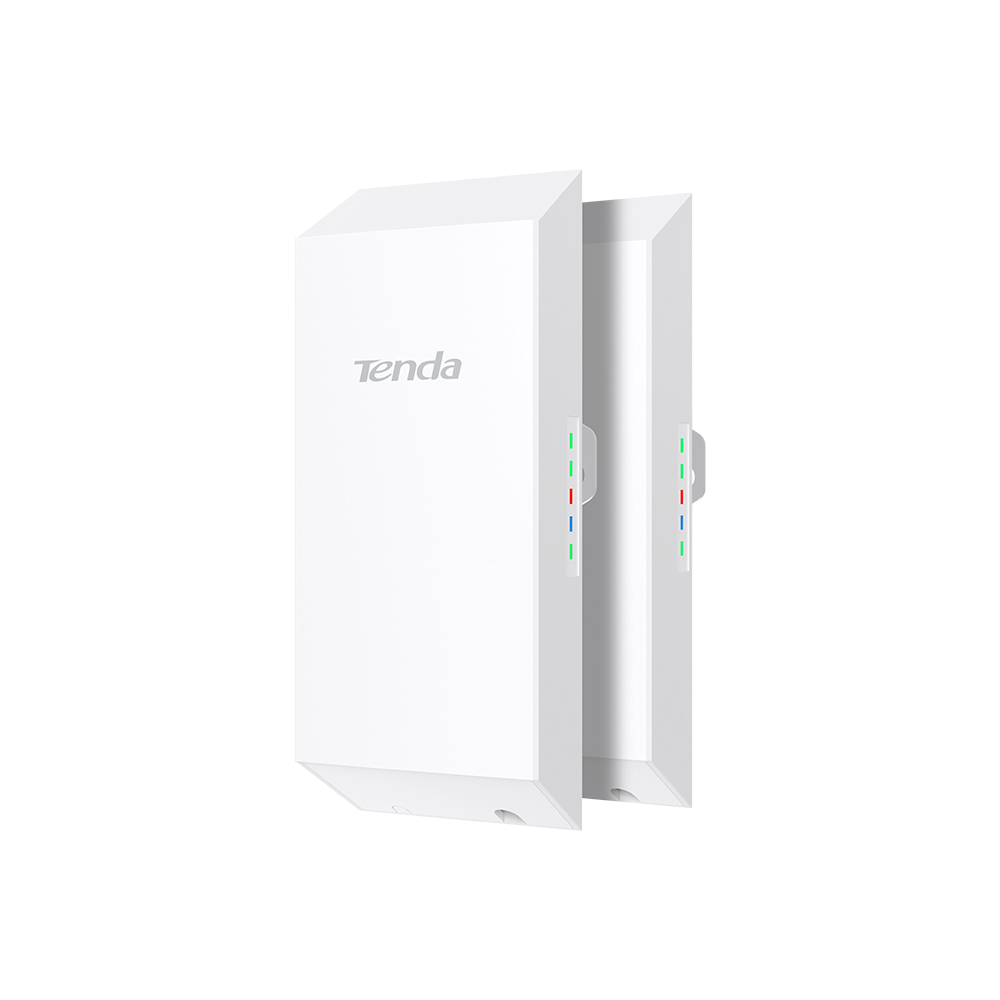

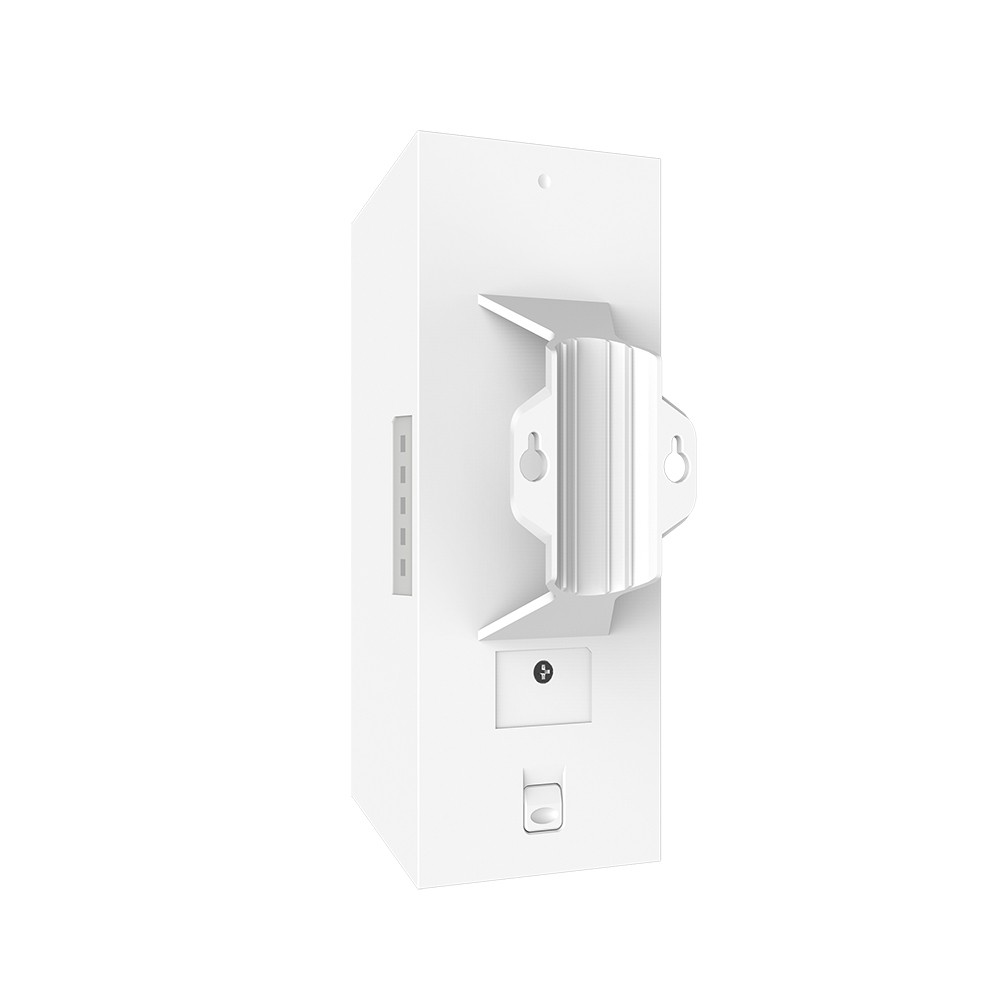

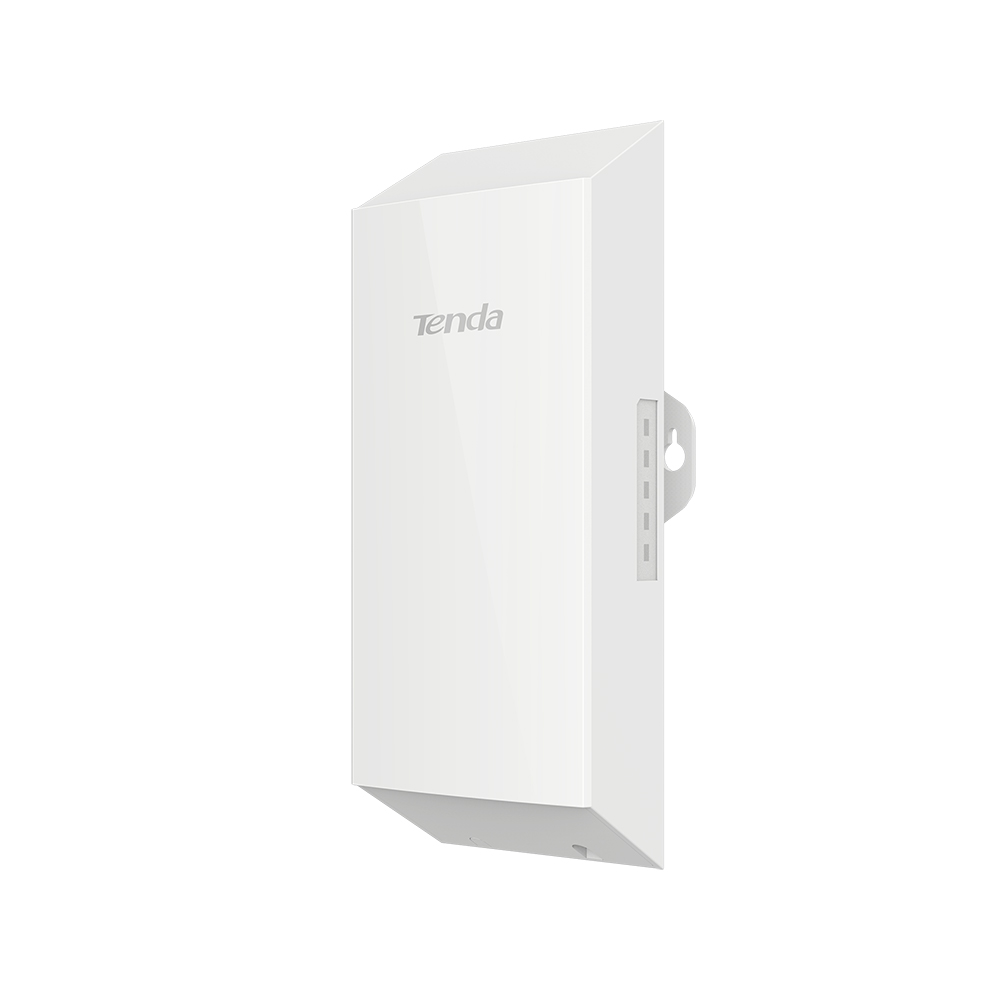

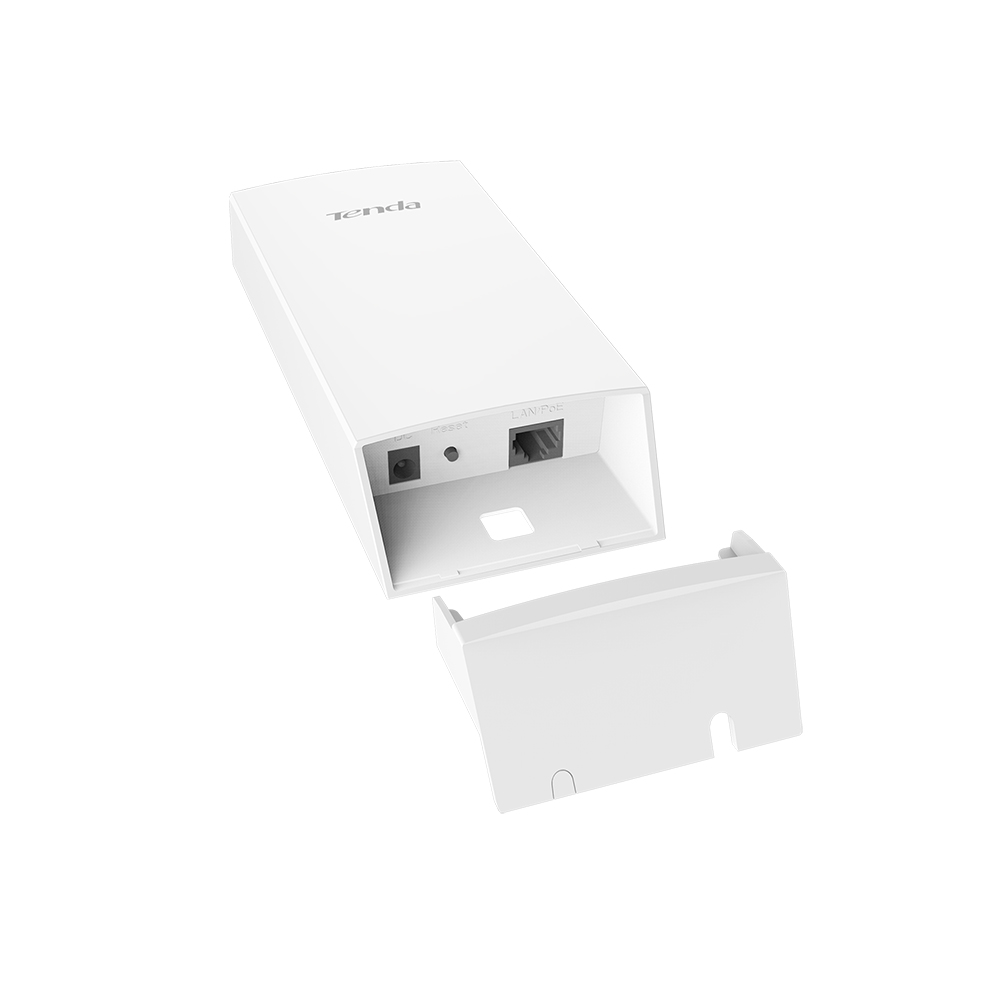

O1 1-Pack 2.4GHz 8dBi Outdoor CPE

SKU: O1-5G
,

O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 8dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup.

Brand:

Description

• 2.4GHz 11n 300Mbps
• 8dbi directional antenna
• IP65 waterproof enclosure
• AP,Station,WISP operating mode supported
• Up to 30 meters of flexible deployment with included PoE Injector

500m+ Wireless Data Transmission
O1 integrates with a 8dBi directional antenna to provide an optimized transmission quality. It picks up and maintains a stable signal for a wireless network connection ranging up to 500 meters．

Professional Outdoor Design
Equipped with IP65 waterproof enclouse and high quality hardware design, O1 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment.

Additional information

Weight 0,25 g
Dimensions 10 × 16 × 9 mm
Frequency Range

2.4GHz
Compliant Standards

IEEE 802.11b/g/n
Maximum Wireless Rate

300Mbps
Interfaces

1*10/100Mbps Ethernet Port
Antenna Polarization

Dual Polarization
Antennas Gain

8dbi
Antenna Beamwidth

Horizontal: 60° Vertical: 60°
Reset Button

1*Reset Button
Power Consumption

2.6W
Waterproof Level

IP65
LED Indicator

PoE/LAN,WiFi, LED1,LED2,LED3
Power Method

9V0.6A Passive PoE
9V0.6A DC
Passive PoE

Passive power over ethenet via PoE/LAN (+4,5pins
-7,8pins)
Voltage range: 9-13.8V DC
Reception Sensitivity

11b 1Mbps -92dBm±1.5dBm
11n MCS0: -92±1.5dBm
11n MCS7: -72±1.5dBm
Managed By Controller

PC Software CPE Assistant
Package Contents

1*2.4GHz 11n 8dBi 300Mbps outdoor CPE O1
1*Power Adapter
1*PoE Injector
1*Quick Installation Guide
