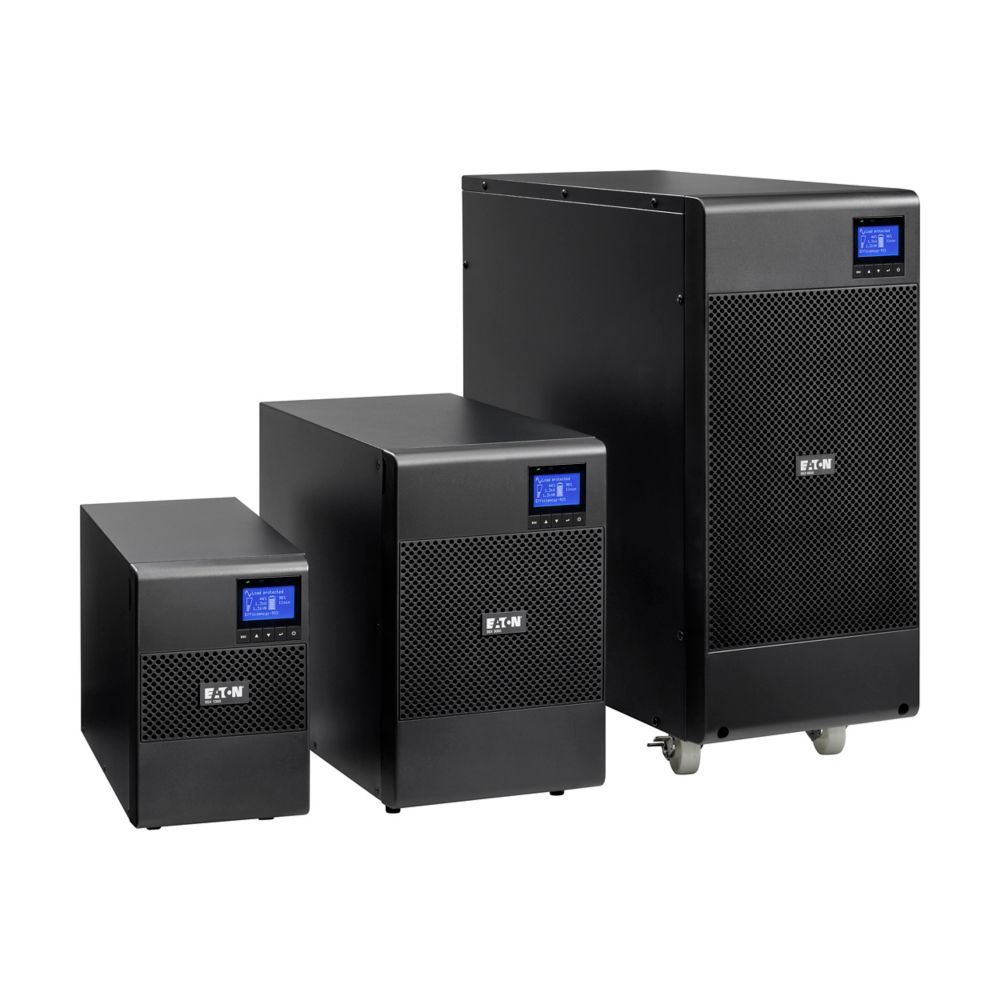

Name: EATON 9SX 2000I TOWER
Brand: EATON
SKU: UPS499

Description

Product Name	Eaton 9SX UPS
Catalog Number	9SX2000I
UPC	743172090980
Product Length/Depth	412 mm
Product Height	346 mm
Product Width	214 mm
Product Weight	33.3 kg
Compliances	CE Marked TUV cULus Listed CSA 22.2 FCC part 15 Class B CISPR22 Class B
Certifications	IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 CE cULus Listed EAC

Additional information

Weight	33,300 g
Dimensions	412 × 214 × 346 mm
Battery	Battery type: Sealed, lead-acid Runtime graph Battery replacement: Hot-swappable internal batteries and extended battery modules (EBMs) Battery quantity: 8 Battery management: ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units Battery rating: 12 V / 7 Ah Extended battery capability: Yes
Communications	Includes network card: No Communication: USB port (HID compliant) Serial port (RS232) Mini-terminal block for remote power off Mini-terminal block for output relay Dry contacts (2 outputs, 1 input, optocoupler, DB9) Ethernet interface: No User interface: Multilingual graphical LCD display Potential free switch contact: Yes Expansion slots: One slot for optional communication card Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector Type of interface: Other
Environmental	Altitude: 3000 m Noise level: <45 dB at 1 meter Temperature range: 0° to 40°C (32° to 104°F) Relative humidity: 0-96% non-condensing
