EATON 9E 1000I ONLINE DOUBLE CONVERSION

SKU: 9E1000I
,

EATON 9E 1000I ONLINE DOUBLE CONVERSION

ncludes network card
No
Communication

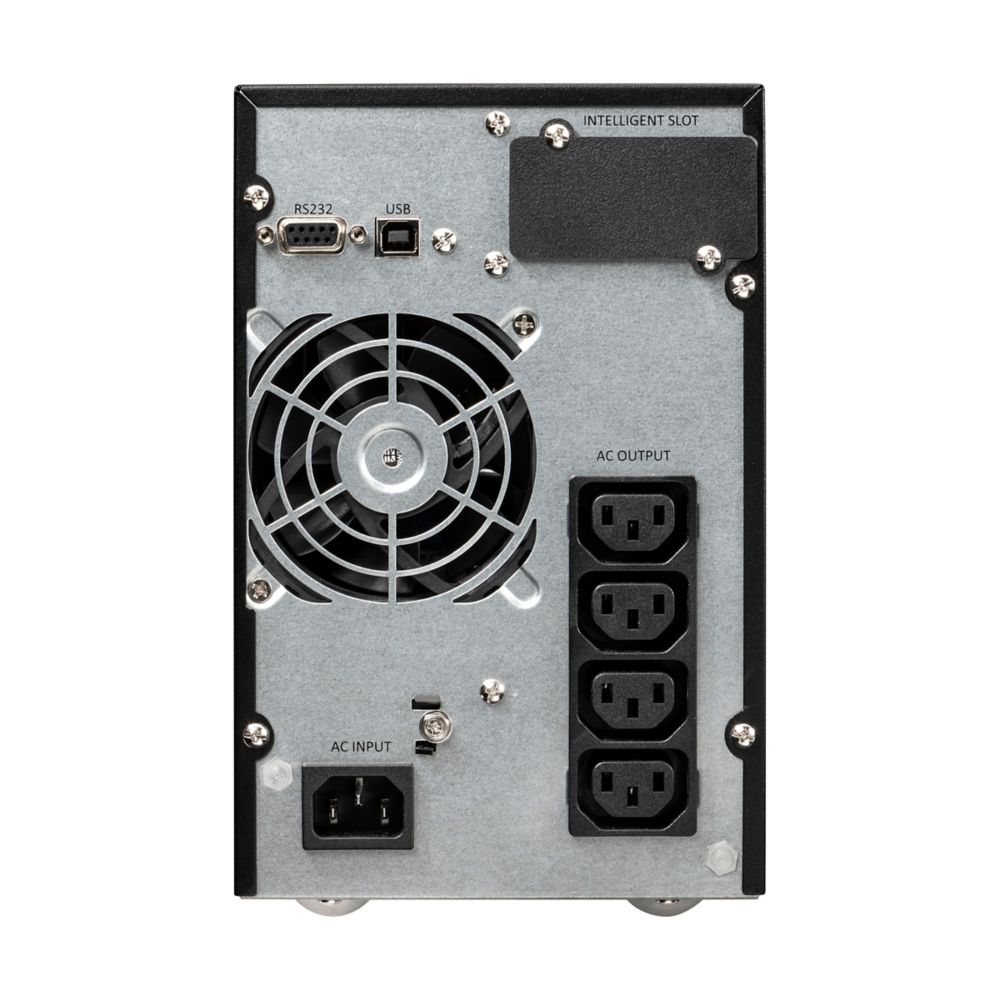

  • USB port (HID compliant)
  • Serial port (RS232)
  • Communication slot
Ethernet interface
No
User interface

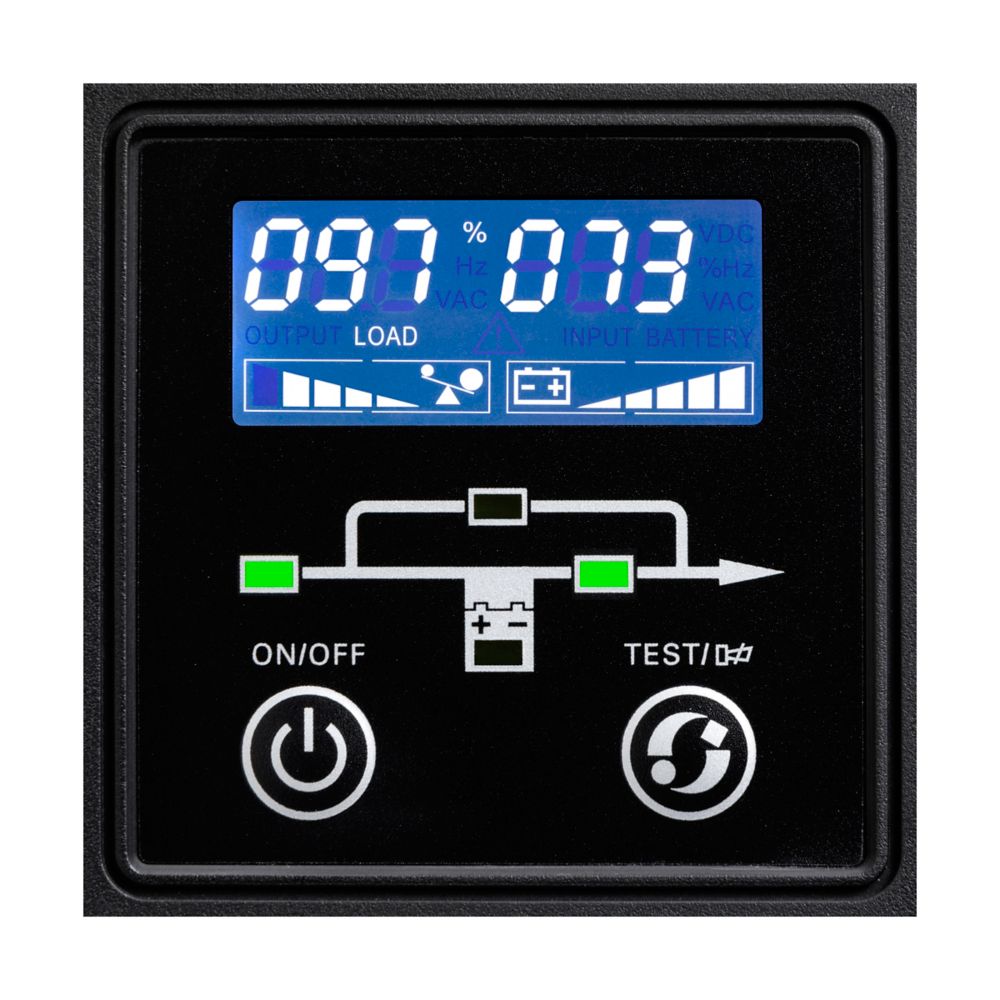

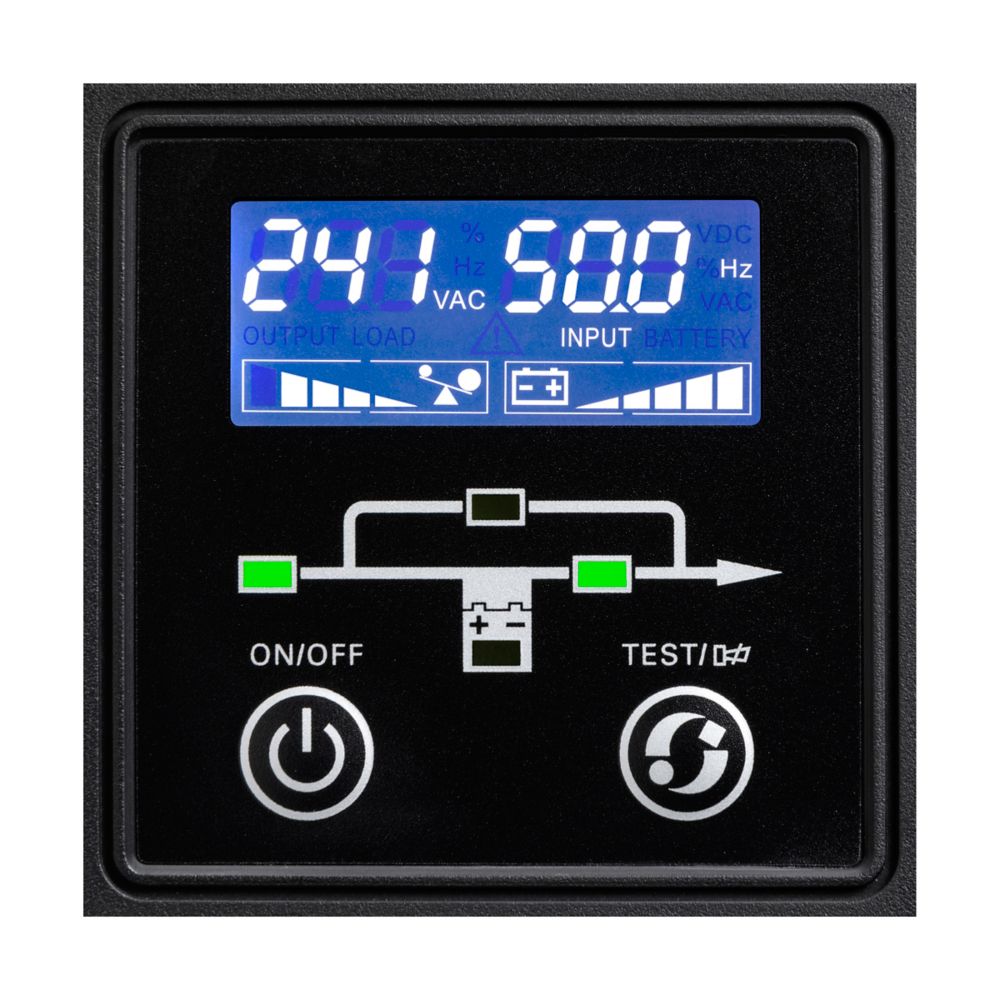

LCD Display
Potential free switch contact
No
Expansion slots

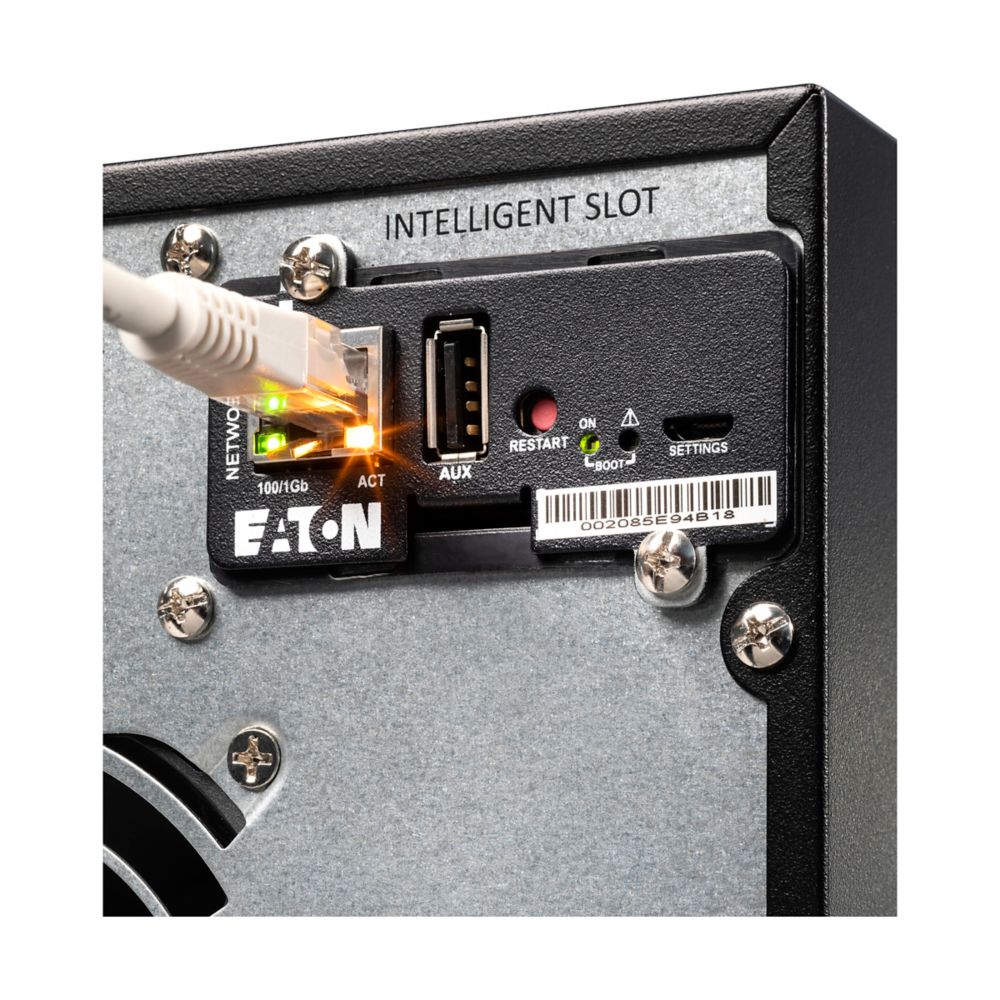

One slot for optional communication card
Software compatibility
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface
Other
Brand:

Description

Product Name
Eaton 9E UPS
Catalog Number
9E1000I
UPC
786689166564
Product Length/Depth
356 mm
Product Height
228 mm
Product Width
144 mm
Product Weight
22.1 kg
Compliances
CE Marked
TUV
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC

Additional information

Battery

Battery type: Sealed, lead-acid
Runtime graph
Battery replacement: Replacable batteries
Battery quantity: 2
Battery management: Automatic battery test
Deep discharge protection

Battery rating: 12 V / 9 Ah
Extended battery capability: Yes
Electrical input

Input connection: C14
Input nominal voltage: 230V default (220/230/240V)
Nominal frequency: 50/60 Hz
Input power factor: >.99
Input voltage range: 176-300 V (100 V-300 V with derating)
Input frequency range: 40-70 Hz
Additional specifications

Construction type: Free standing model
Package contents:
UPS
USB cable
Serial cable
Quickstart guide
Safety instructions

Phase (output): 1
Internal bypass: Yes
Auto shutdown function: Yes
Color: Black
Efficiency: 91
Rack mounting kit: No
Phase (input): 1
Hot swap power: No
